Teach Pendant Repair

FANUC, ABB, KUKA, Motoman and other robot pendants repaired with OEM parts and tested on a live robot.

AST REPAIR SPEC
Standard
2–3 days
Rush
Same day, all makes
Test
On a live robot
Warranty
1 yr parts + service
Obsolete
Parts reproduced

Get the robot back online without buying a new pendant

When a teach pendant fails, the cost that matters is the downtime. The robot may be mechanically fine, but nobody can program, jog or troubleshoot it.

AST repairs teach pendants for industrial robots and machines, including FANUC, ABB, KUKA and Motoman. Repaired robot pendants are tested on actual robots before they are returned.

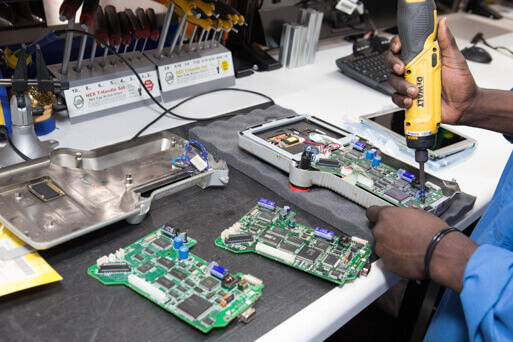

AST technician reassembling an opened robot teach pendant on an ESD bench, with its circuit boards and housing laid out beside it
A robot teach pendant being reassembled on the AST repair bench, with its logic boards laid out for inspection.
  • Standard turnaround of 2 to 3 days
  • Same-day rush service on all makes
  • OEM components used in every repair
  • Robot pendants tested on robots
  • Custom rapid prototype parts for obsolete pendants
  • Large inventory of robot teach pendants
  • 1-year warranty on parts and service

Faults we repair

  • Damaged or unresponsive keys
  • Display or touchscreen failures
  • Joystick or jog control problems
  • Cracked or broken enclosures
  • Intermittent operation
  • Communication or cable faults
  • Internal electronic failures
  • Drop damage
  • Hard-to-source older components

Repair or replace?

You usually have three options: repair your pendant, buy a new one, or buy a remanufactured unit from stock. Repair tends to make sense when:

  • a new pendant is expensive or on a long lead time
  • the pendant belongs to an older robot system
  • keeping the original model avoids changes to the cell
  • production needs the fastest path back online

Obsolete pendants

Replacing a productive robot because one pendant part is no longer made makes little sense. Our rapid prototyping shop can reproduce obsolete housings and plastic parts, so the original pendant can go back into service.

Process

How we repair a teach pendant

  1. Incoming inspection

    We check the enclosure, cable, connector, keys, enable switch and E-stop, and record the reported fault.

  2. Bench diagnosis

    The pendant is powered and tested for display, touch, key matrix and communication.

  3. Repair

    Failed LCDs, touchscreens, keypads, joysticks, enable switches, E-stops, cables and boards are replaced with OEM parts.

  4. Safety circuit test

    E-stop and the 3-position enable (deadman) switch are tested for correct operation on both channels.

  5. Robot test

    The pendant is connected to a robot controller and used to jog, program and run the robot before it ships.

Diagnosis

Common teach pendant failures

Pendant problems we fix

  • Cracked, dim or blank screen
  • Touchscreen doesn't respond
  • Keys stuck or not responding
  • Enable switch or E-stop faults
  • Communication lost with the controller
  • Damaged cable or connector
  • Broken or cracked housing

Parts we repair or replace

  • LCD and backlight
  • Touch panel
  • Membrane keypads and key mats
  • 3-position enable switches
  • E-stop buttons
  • Pendant cables and connectors
  • Main and power boards
  • Housings, reproduced in-house for obsolete models
Models

Teach pendants we commonly repair

Not a complete list. Send us the part number from the back of the pendant.

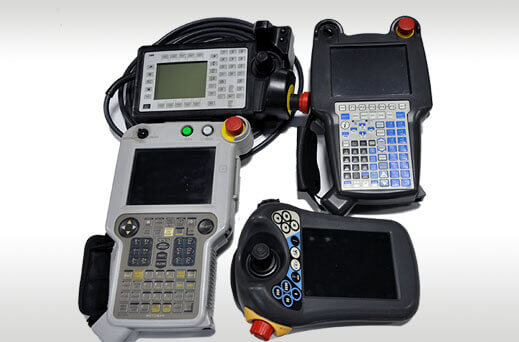

Teach pendant models
BrandProduct families we commonly see
FANUCiPendant (color and touch), iPendant Touch, Tablet TP, legacy monochrome pendants (A05B-2255, A05B-2256, A05B-2301, A05B-2518 families)

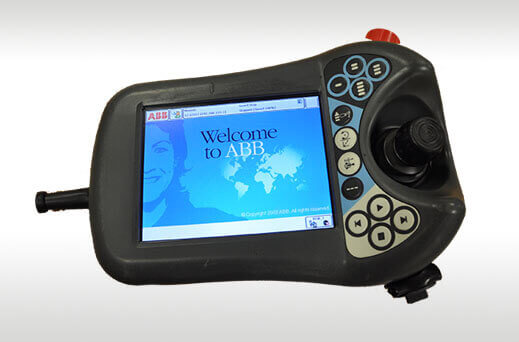

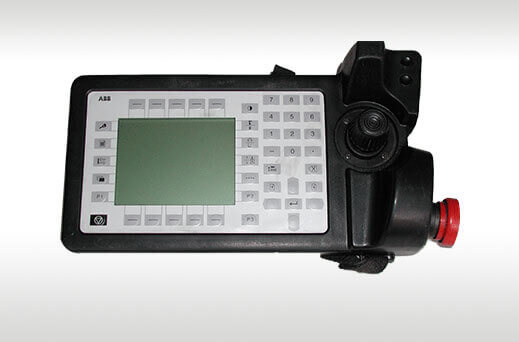

ABBFlexPendant for IRC5 and OmniCore controllers, legacy S4C pendants
KUKAsmartPAD and smartPAD-2 (KRC4/KRC5), KCP2 and KCP1 (KRC2/KRC1)
Yaskawa MotomanPendants for YRC1000, DX200, DX100, NX100 and XRC controllers
NachiPendants for FD and AX controllers
Machine pendantsIndramat, Siemens and Fuji pendants and handheld operator units
Coverage

Teach pendant brands we repair

Don't see your brand? Send the part number anyway. Many older and discontinued units can still be repaired or rebuilt.

  • FANUC
  • ABB
  • KUKA
  • Motoman
  • Nachi
  • Fuji
  • Indramat
  • Siemens
Questions

Teach Pendant Repair FAQ

How long does teach pendant repair take?

Standard turnaround is 2 to 3 days. Same-day rush service is available on all makes.

Which teach pendants do you repair?

FANUC, ABB, KUKA, Motoman, Nachi, Fuji, Indramat, Siemens and many others.

Do you test pendants before returning them?

Yes. Repaired robot pendants are tested on robots in our facility.

What warranty comes with a pendant repair?

One year on parts and service performed.

Line down? Send us the part number.

Rush evaluations are completed the same day. Most quotes are based on the damage we find, not the price of a new unit.
